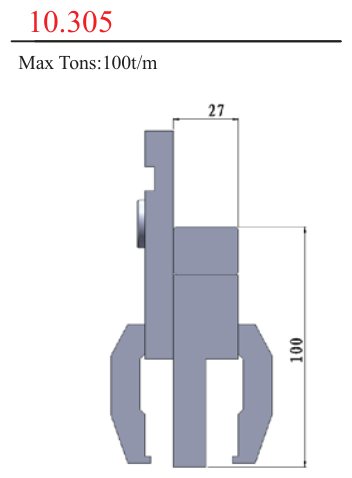

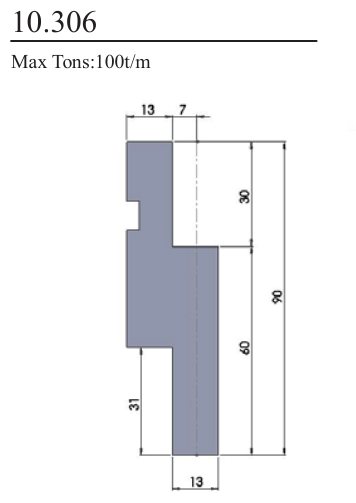

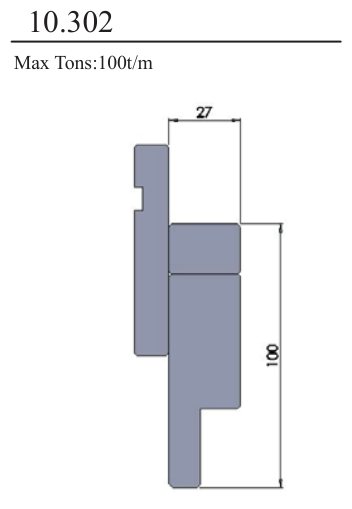

Upper tooling for every profile

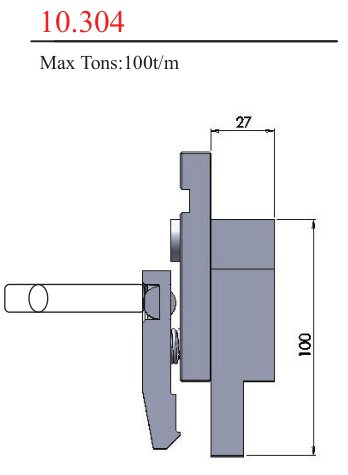

Precision-ground punches in 42CrMo, through-hardened to 55±2 HRC. Supplied in Promecam-Euro, Amada and Trumpf-WILA clamping styles, with anti-rust coating and demagnetising as standard. Segmented or one-piece; maximum height to 480 mm.
Standard 90°
Acute 85–60°
Gooseneck
R-type radius
Flattening
Heavy-duty
| Punch type | Angle | Tip radius | Max tonnage | Typical use |
|---|---|---|---|---|

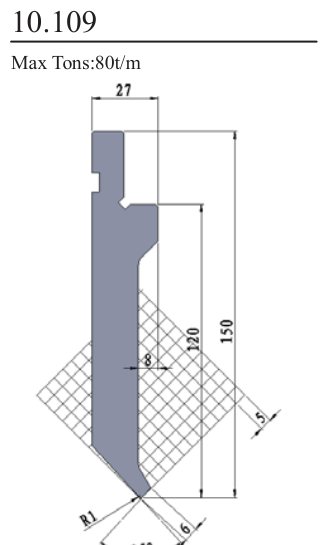

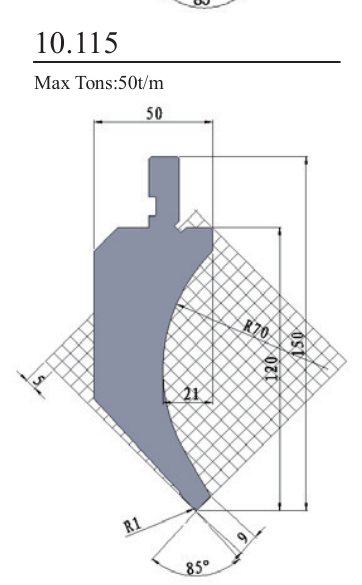

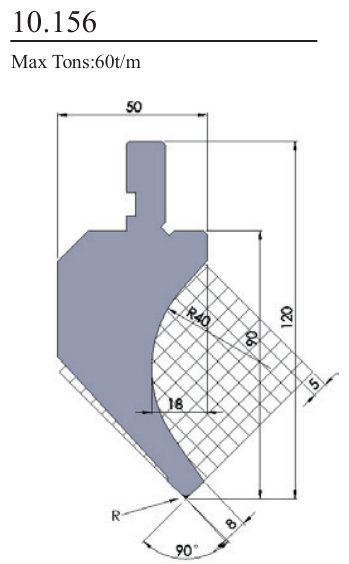

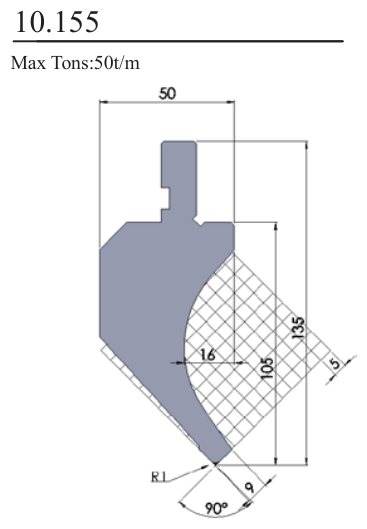

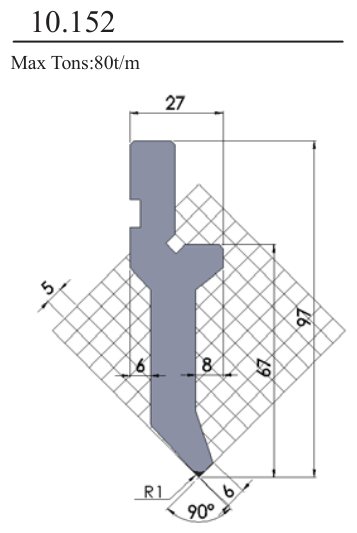

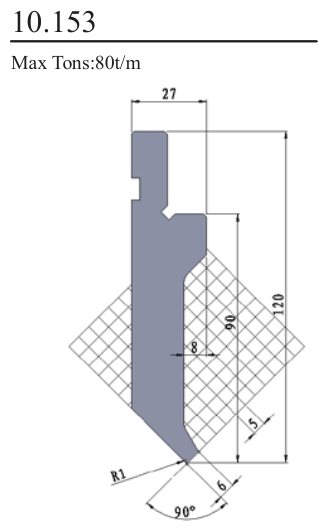

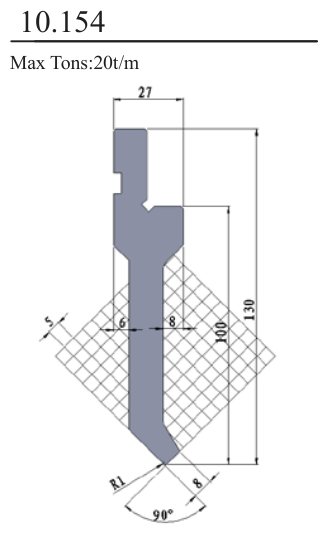

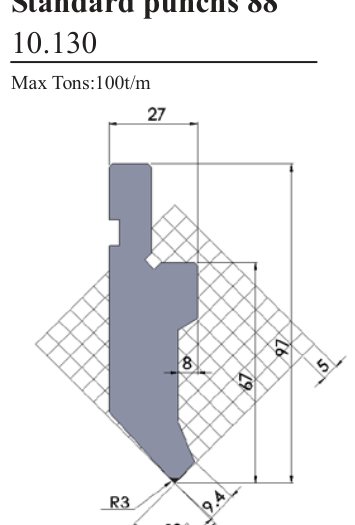

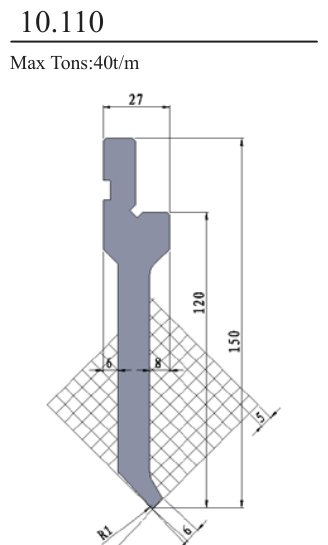

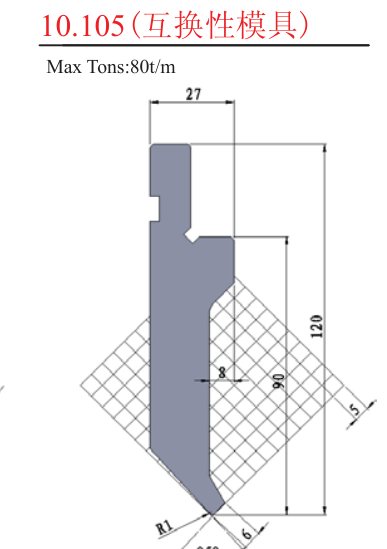

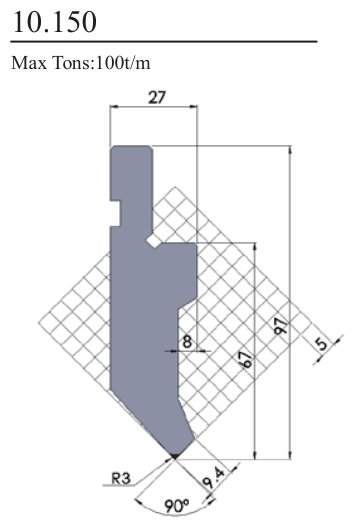

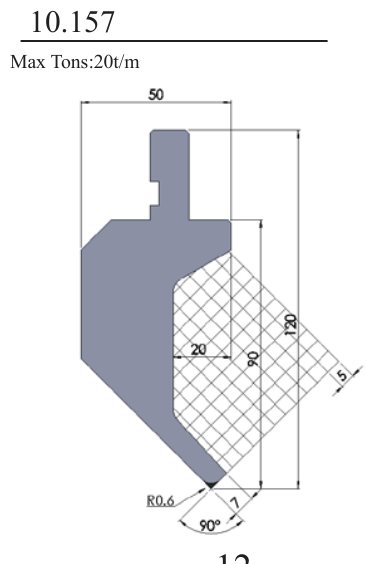

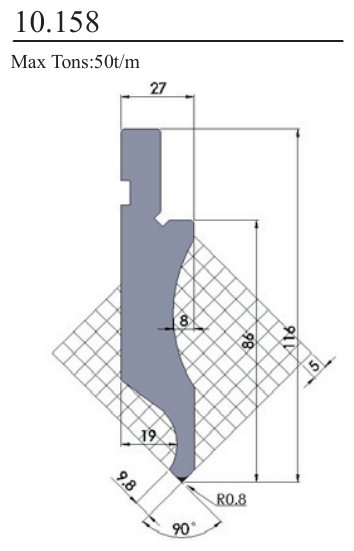

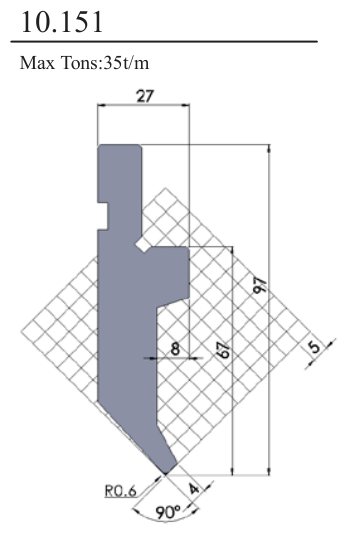

| Standard 90° | 90° | R0.2–R3 | ≤ 100 t/m | General air bending |

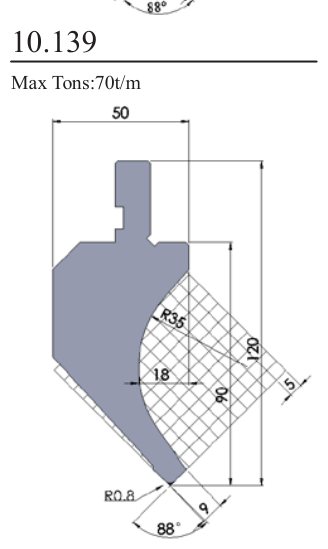

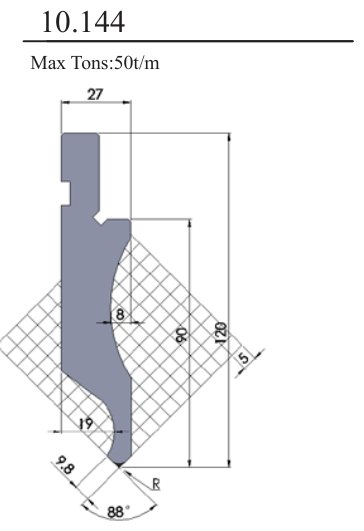

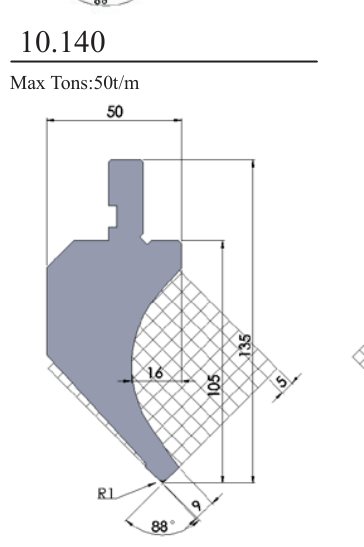

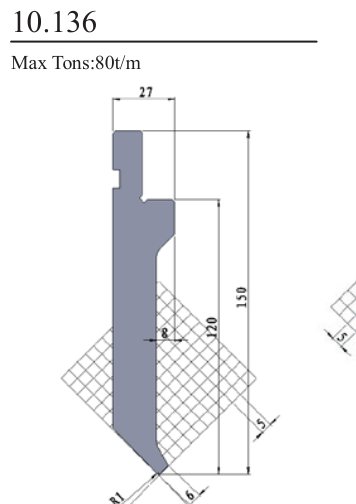

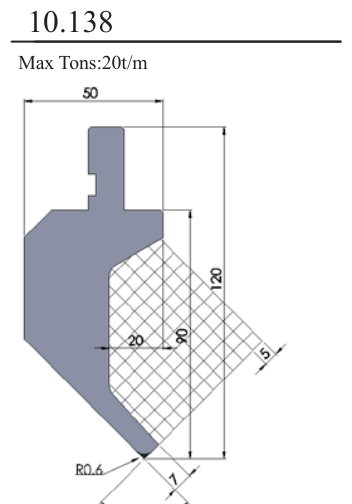

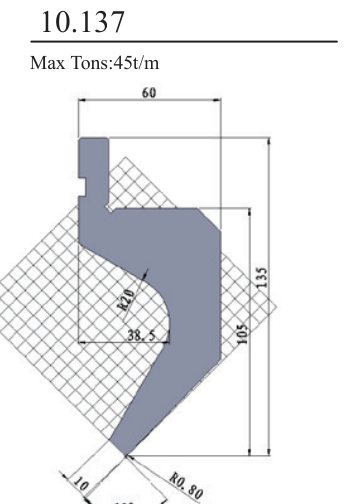

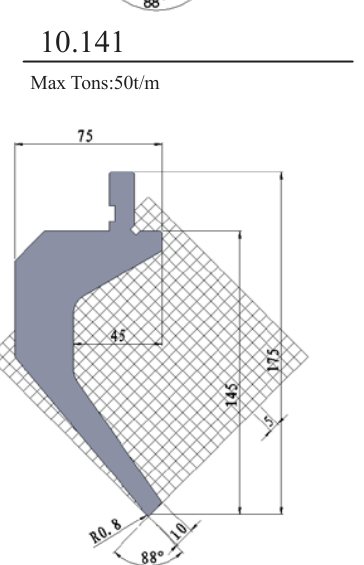

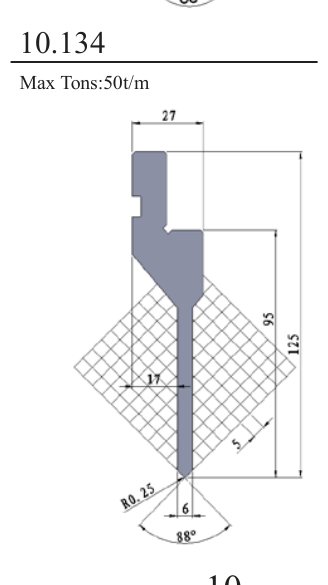

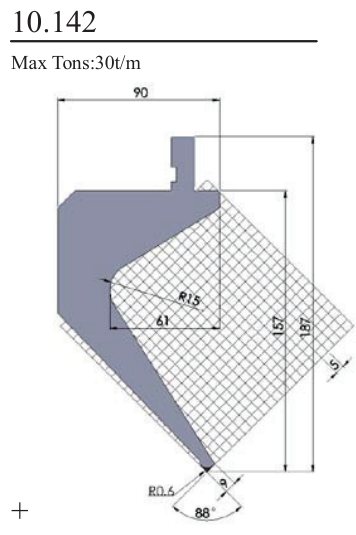

| Acute 88° | 88° | R0.2–R1 | ≤ 100 t/m | Springback compensation |

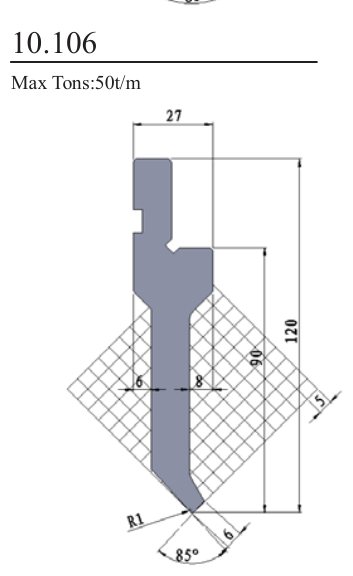

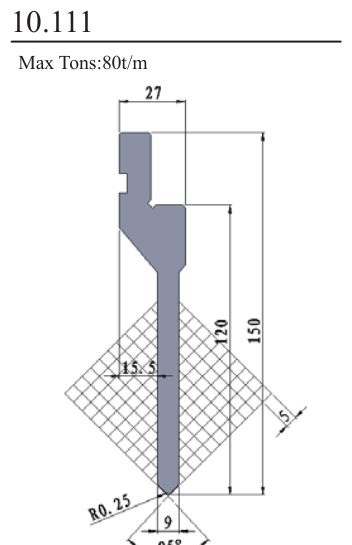

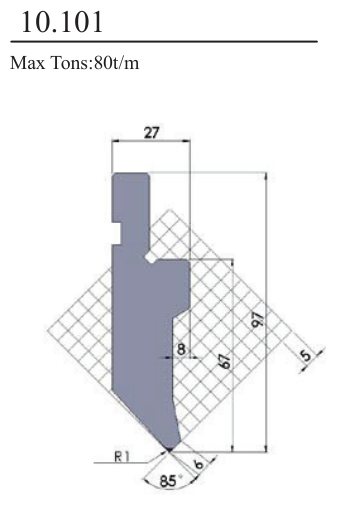

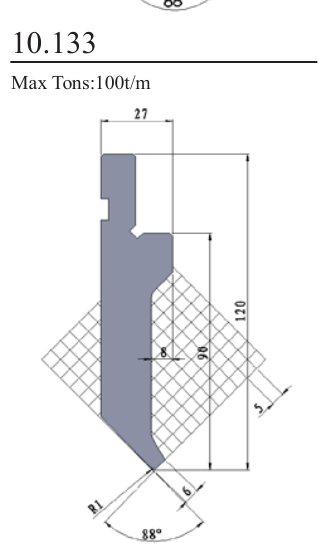

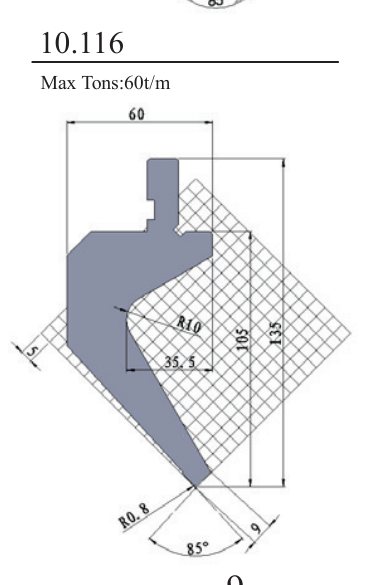

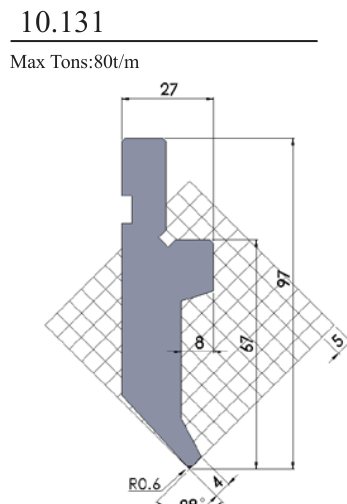

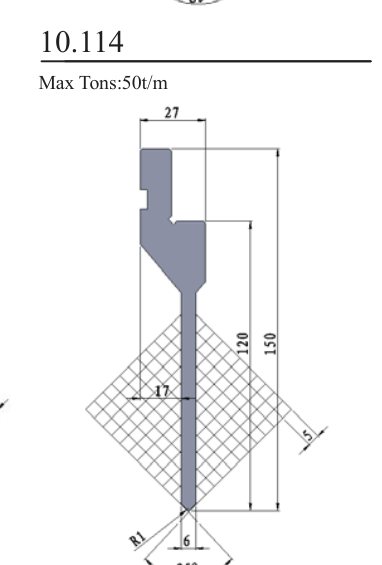

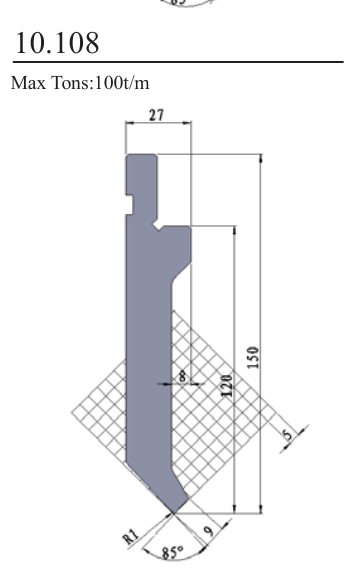

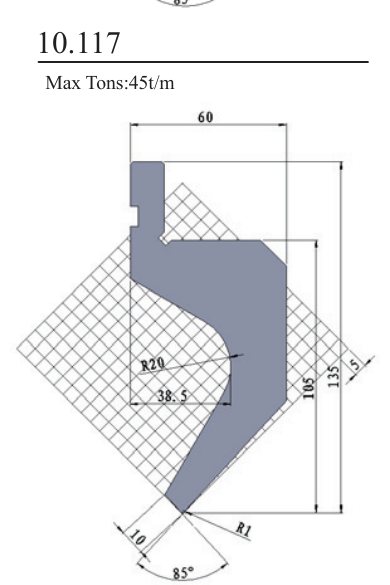

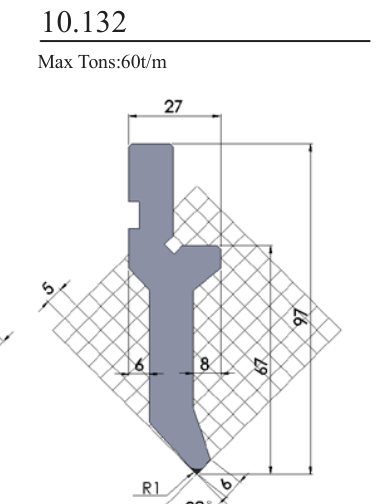

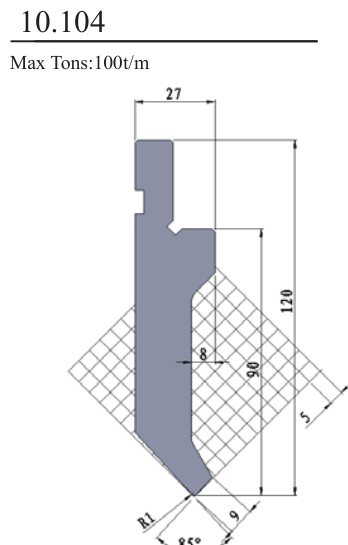

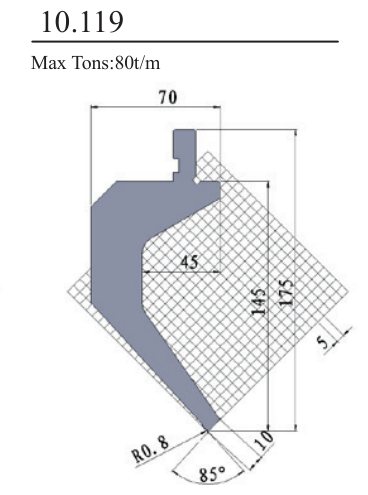

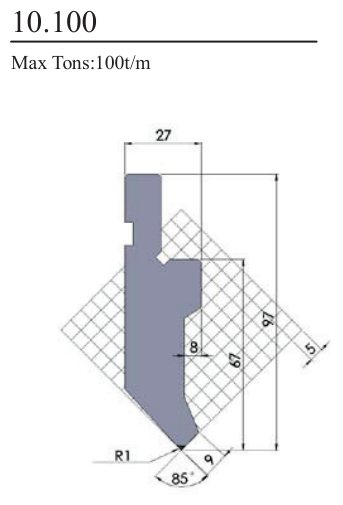

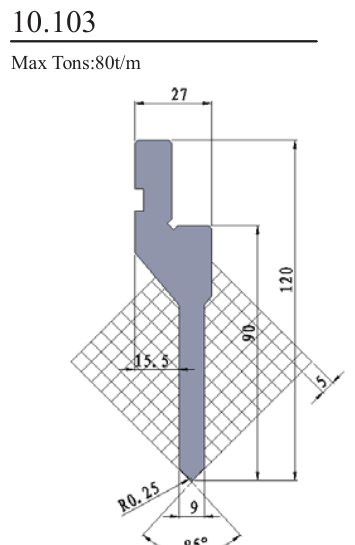

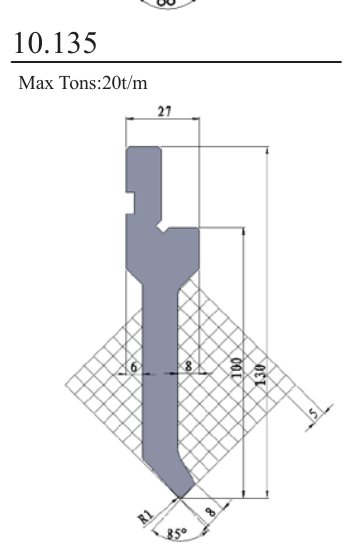

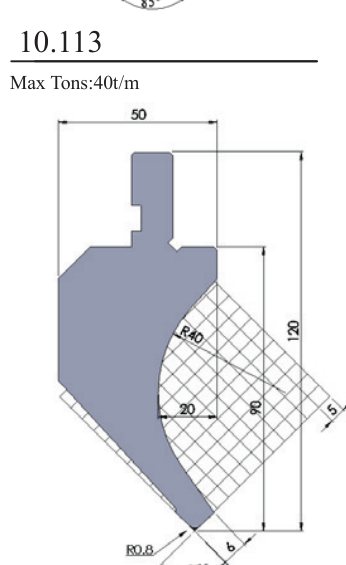

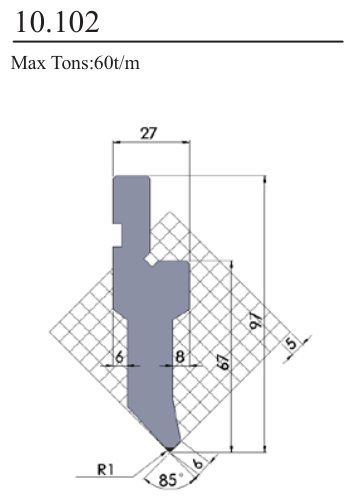

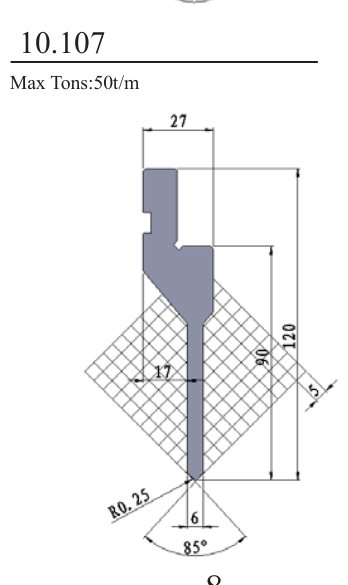

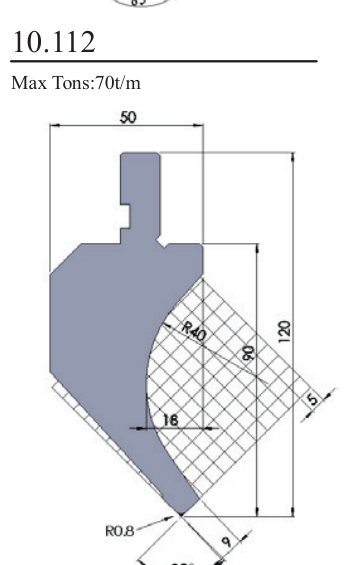

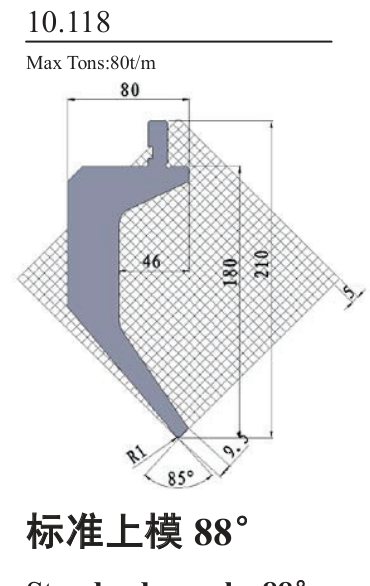

| Acute 85° | 85° | R0.2–R0.6 | ≤ 100 t/m | Over-bending, stainless |

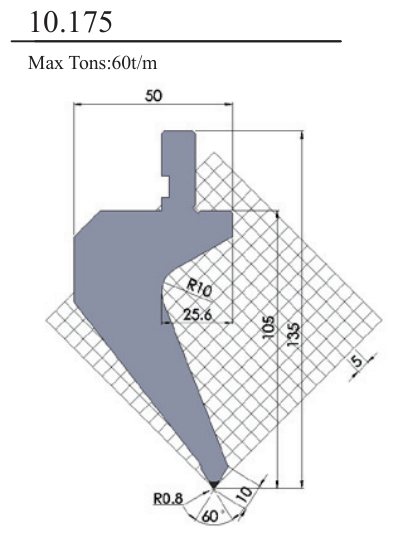

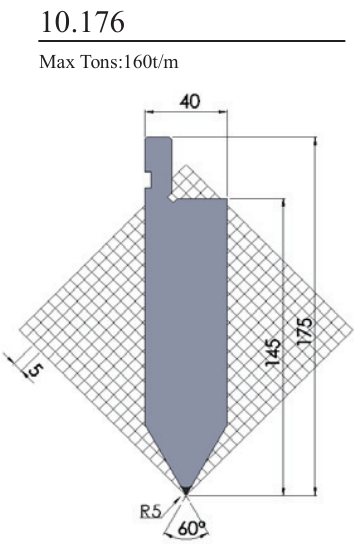

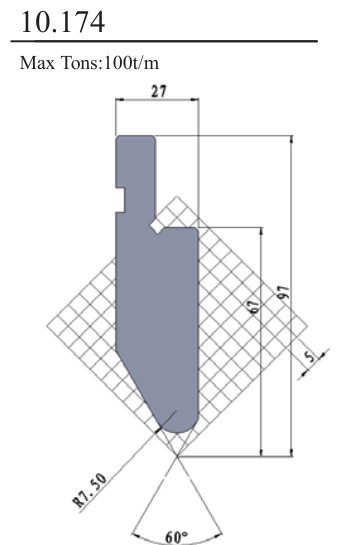

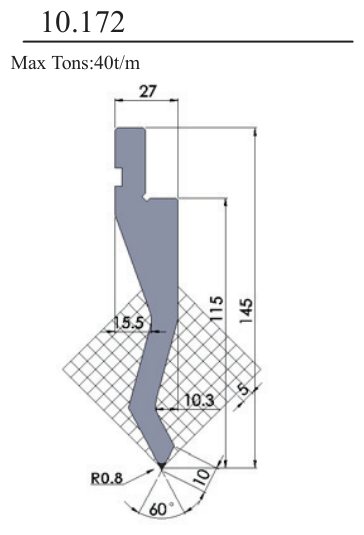

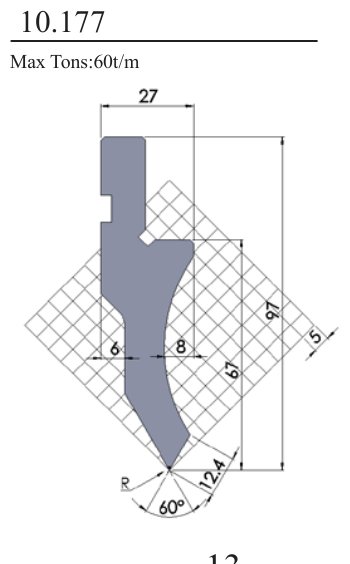

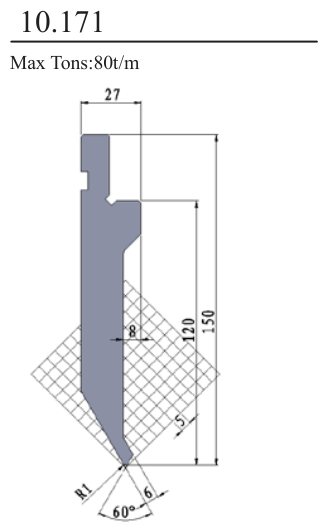

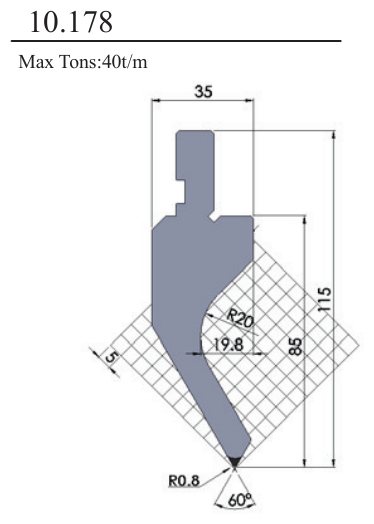

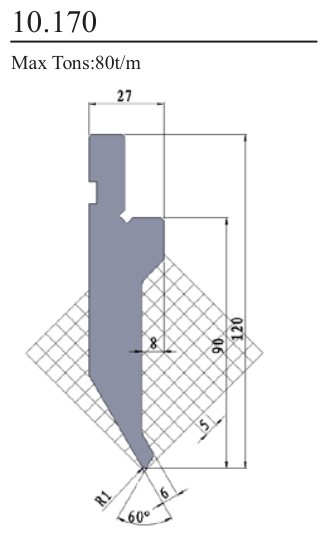

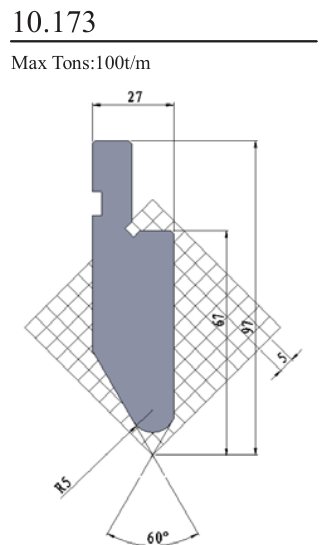

| Acute 60° | 60° | R0.2–R0.6 | ≤ 80 t/m | Deep / sharp bends |

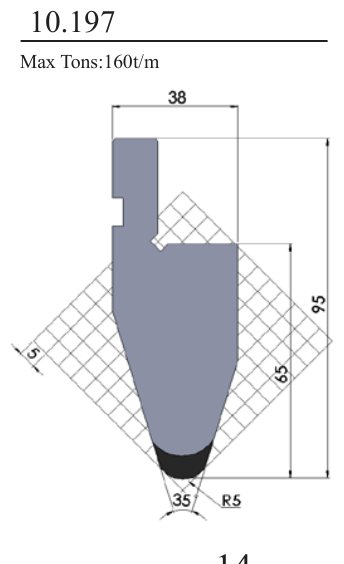

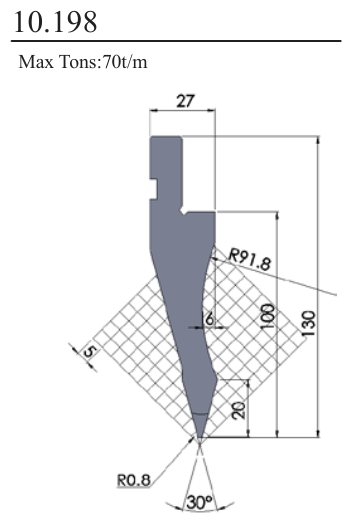

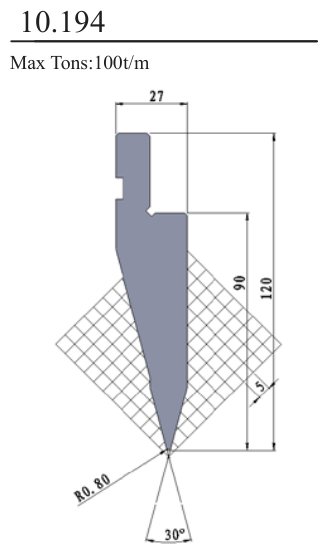

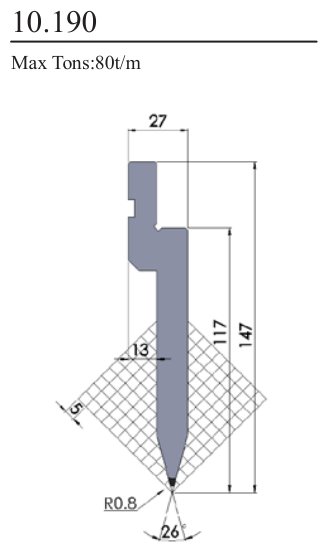

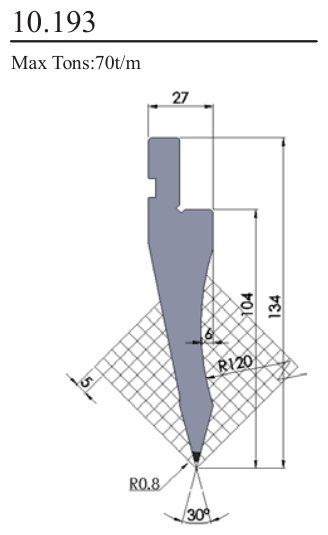

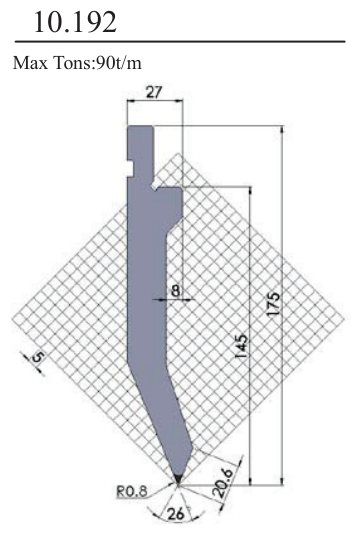

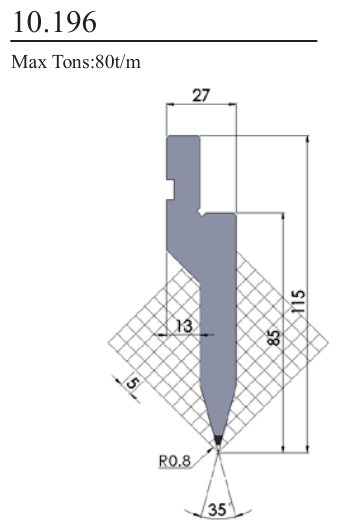

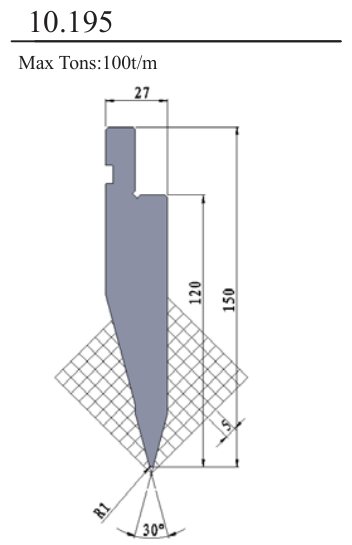

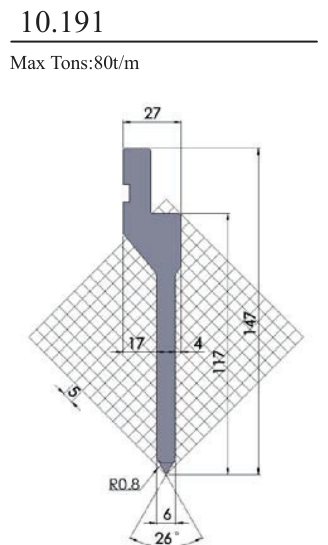

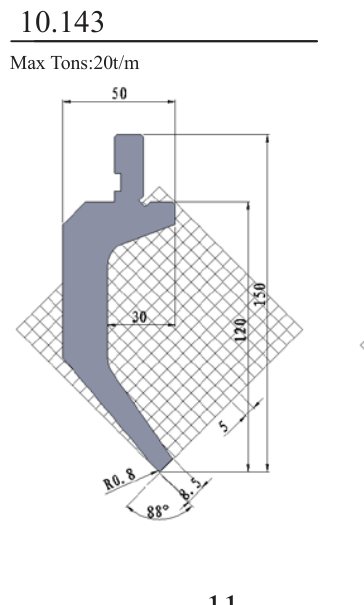

| 26°/30°/35° narrow | 26–35° | R0.2 | ≤ 60 t/m | Very sharp acute angles |
| Gooseneck (offset) | 88°/90° | R0.6–R1.5 | ≤ 80 t/m | Return flanges, U-channels |

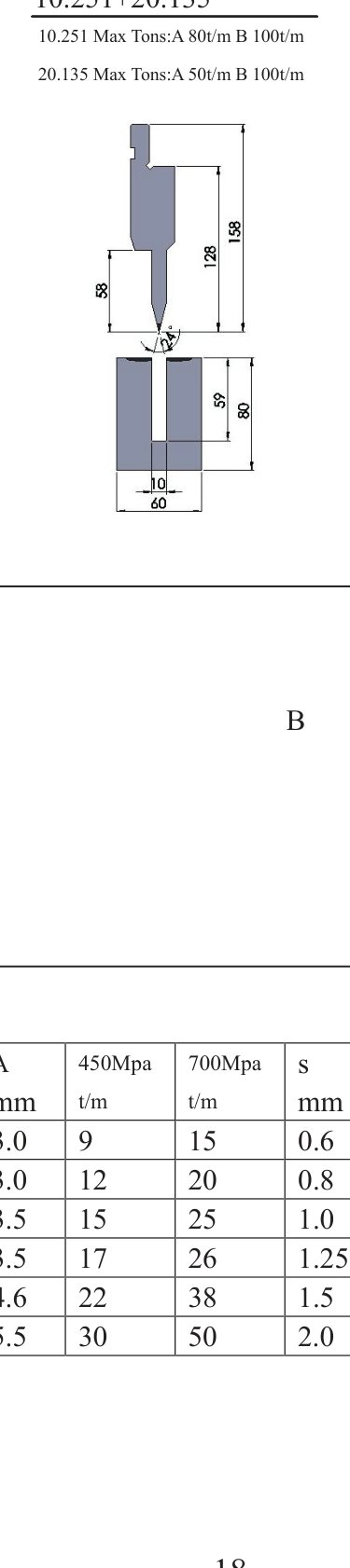

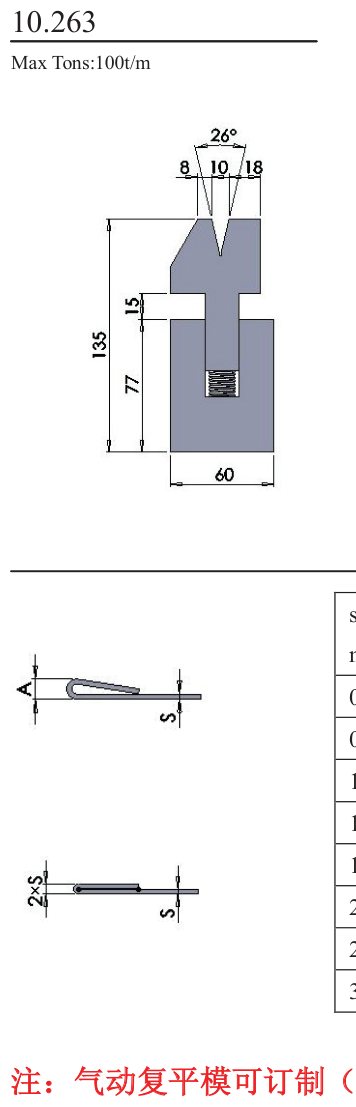

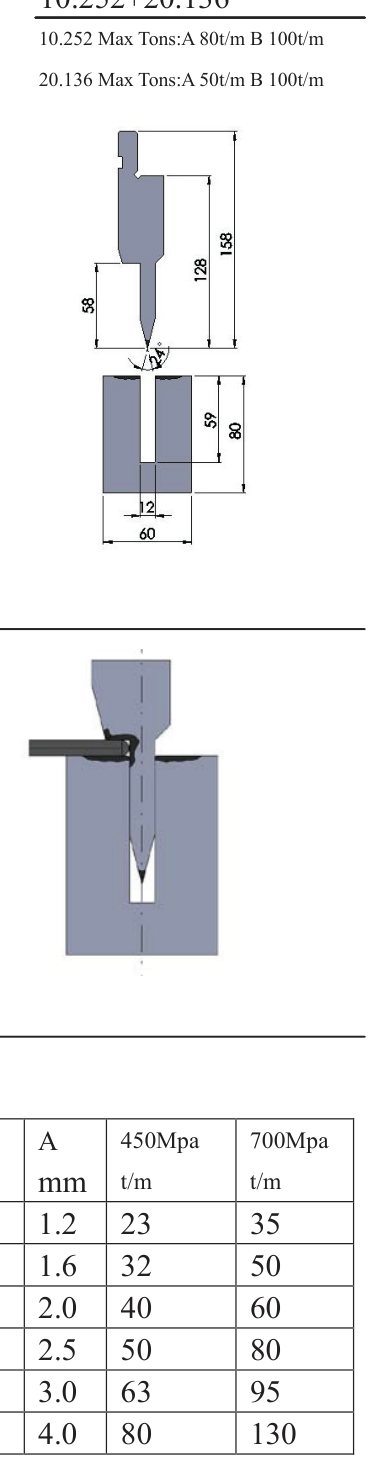

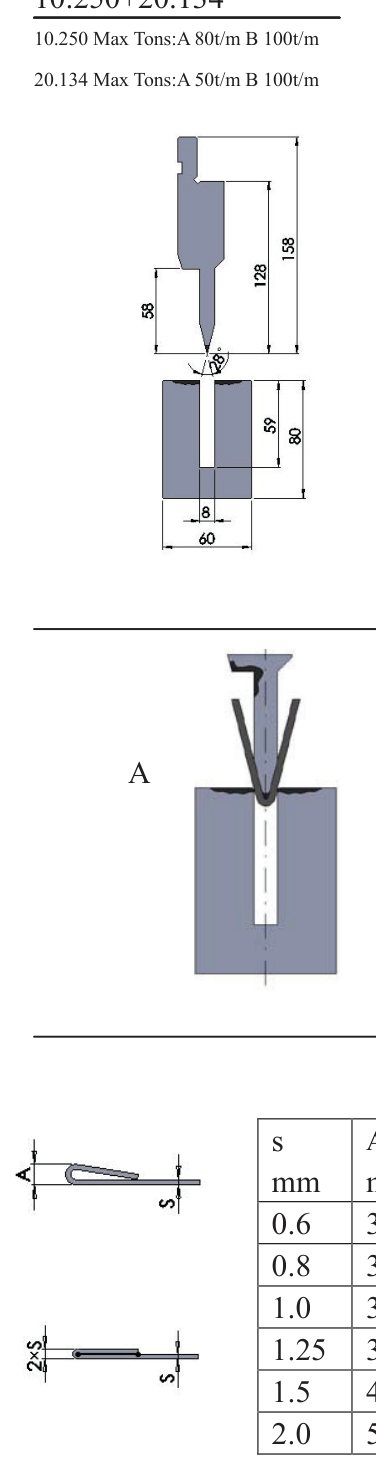

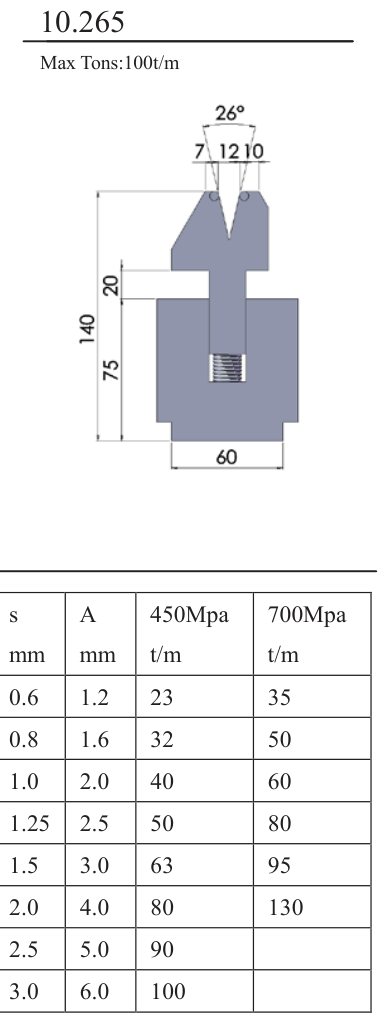

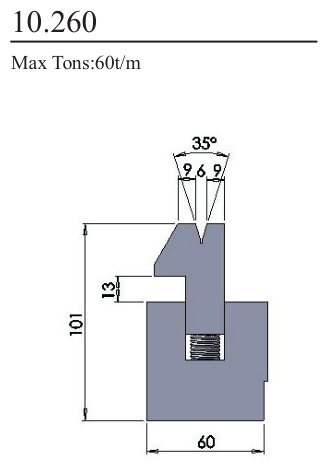

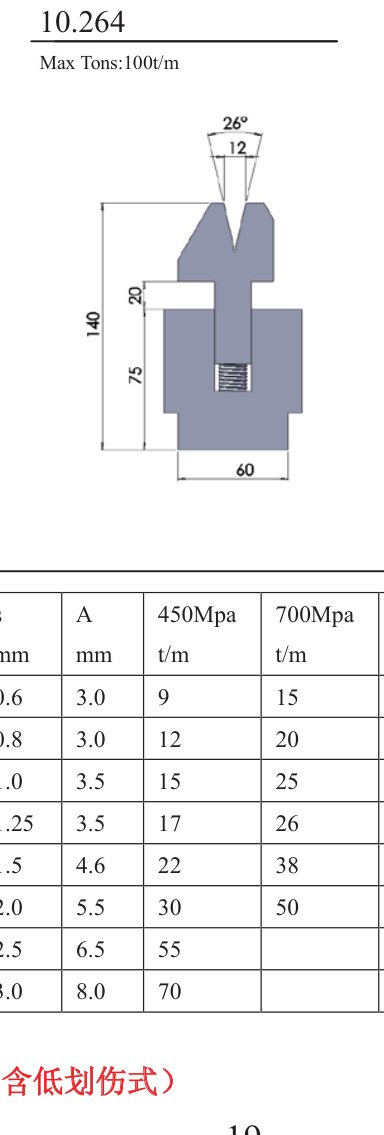

| Flattening (hemming) | — | — | pressing | Closing hems / seams |

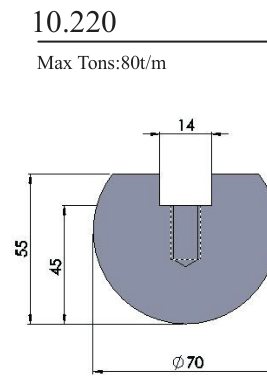

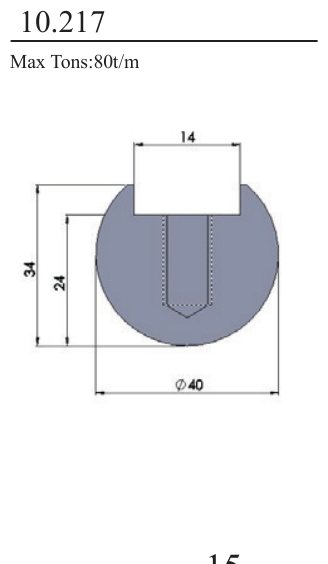

| Radius (R-type) | — | R3–R60+ | varies | Large-radius forming |

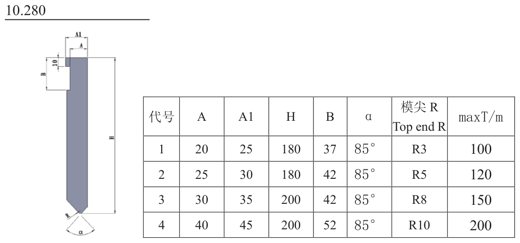

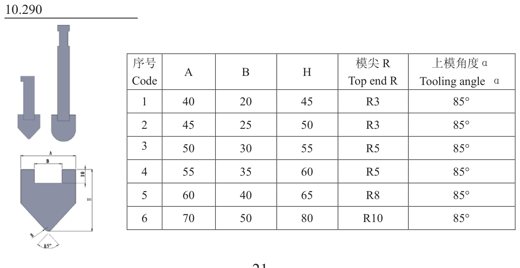

| Heavy-duty direct-link | 90° | R0.6+ | > 150 t/m | Thick plate, high tonnage |
Note: angle, radius and length are made to your requirement; tonnage figures are indicative. Tell us your machine, material and drawing and we confirm exact specifications from our current catalogue.
Standard & Acute Punches
90° / 88° / 85° / 60°, R0.2–R3, Promecam & Amada styles.

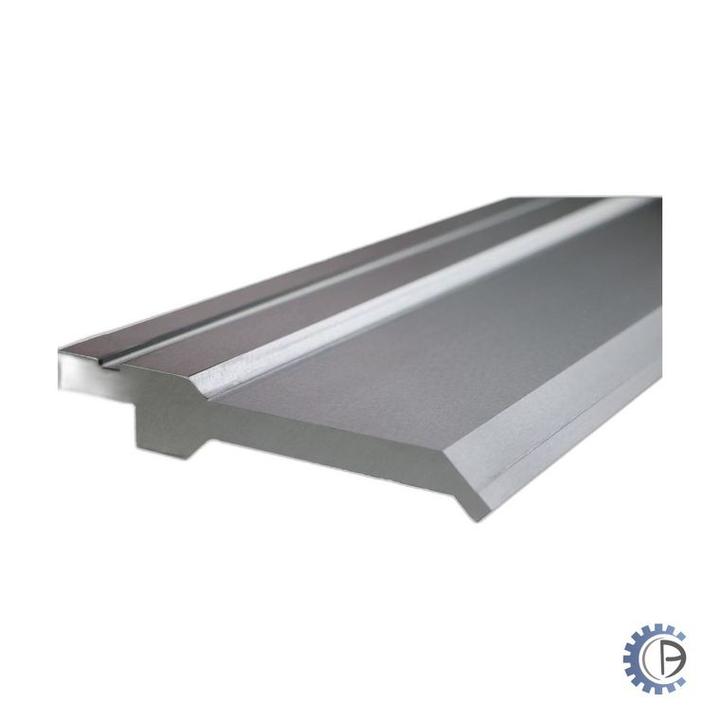

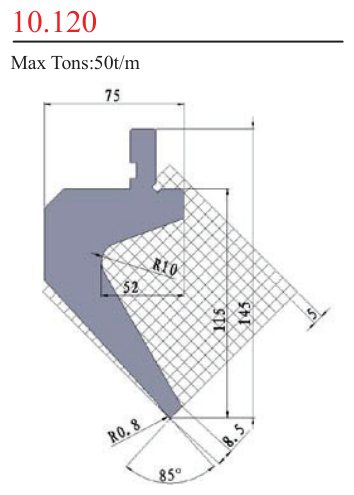

Gooseneck Punches
Deep-throat offset for return flanges and box profiles.

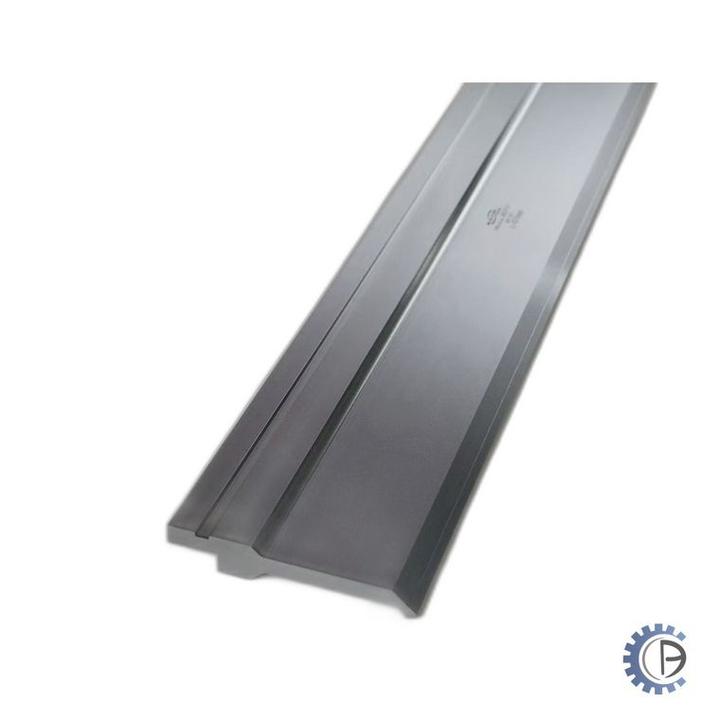

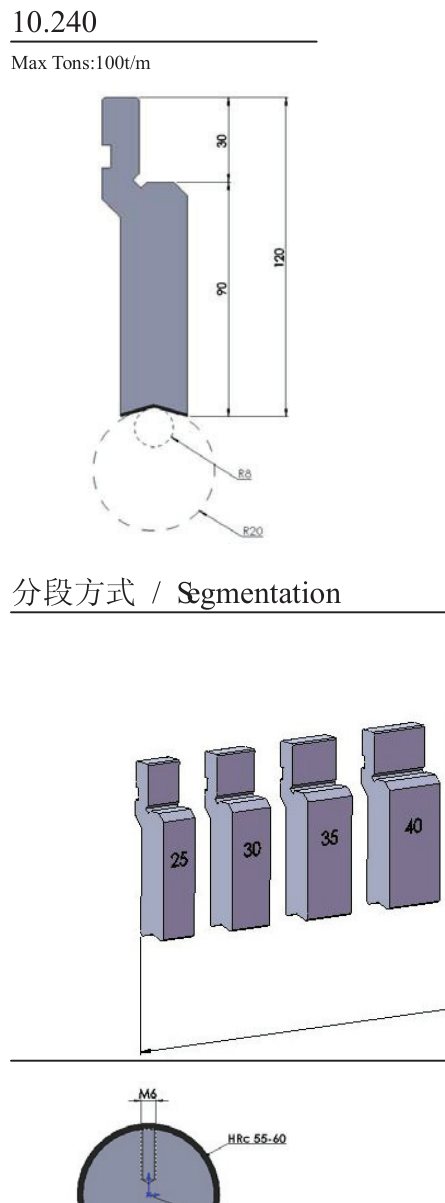

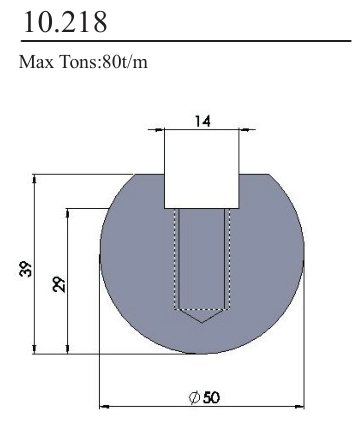

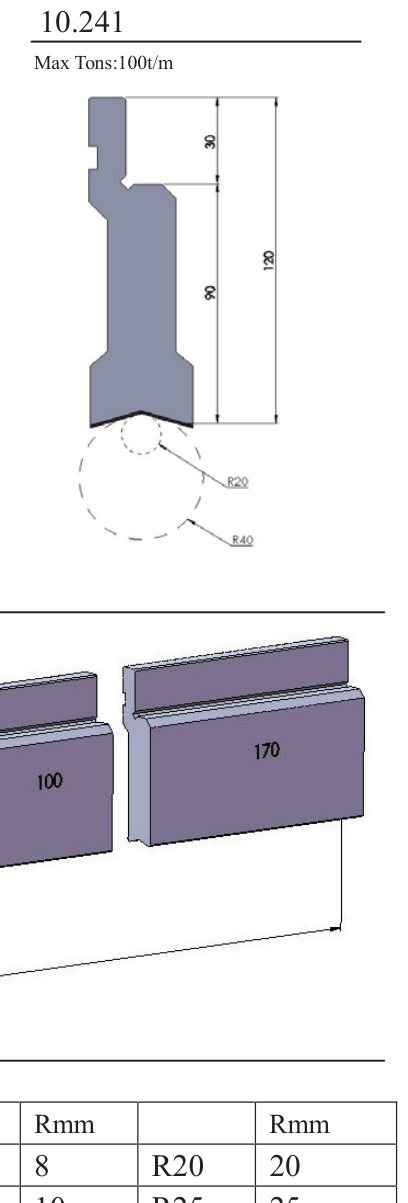

Radius (R-type)

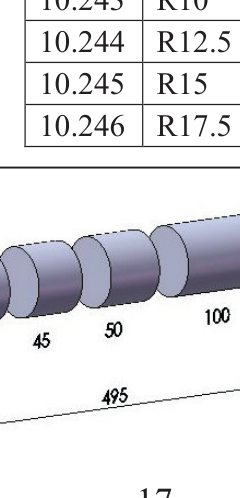

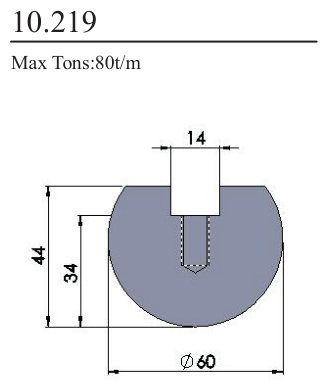

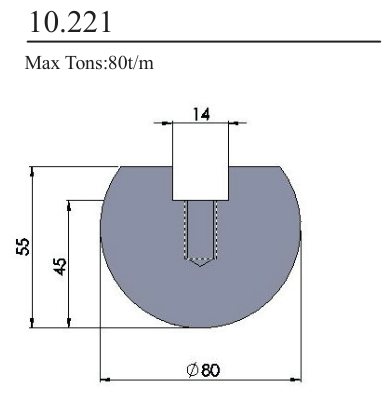

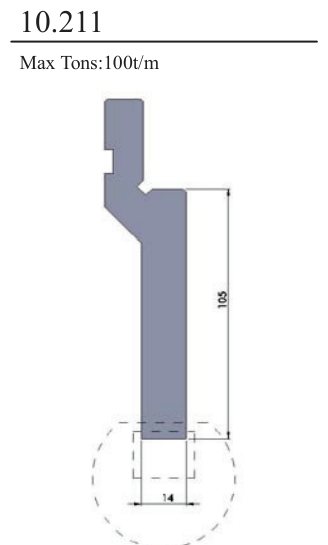

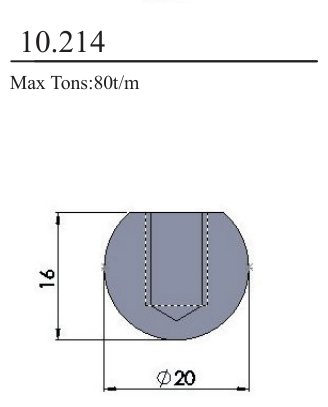

Large-radius forming punches, R3–R60 and above.

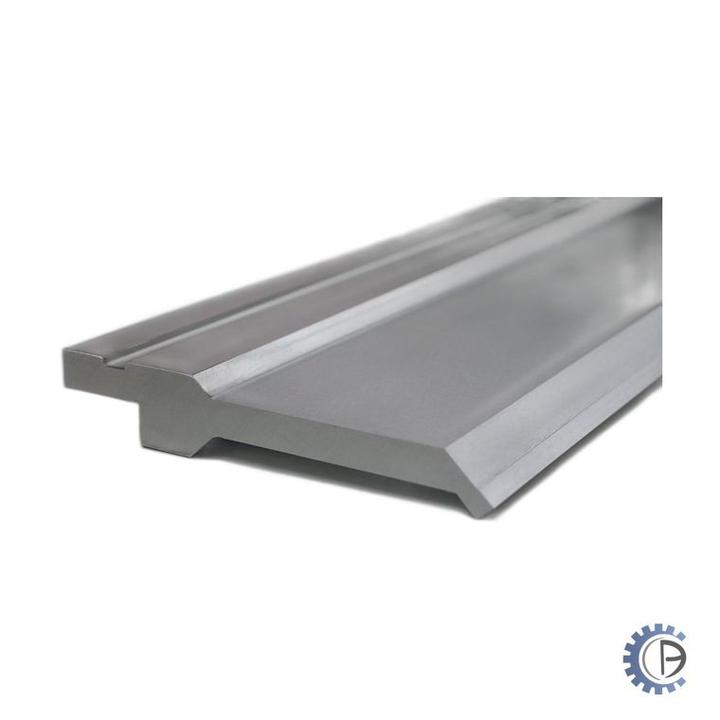

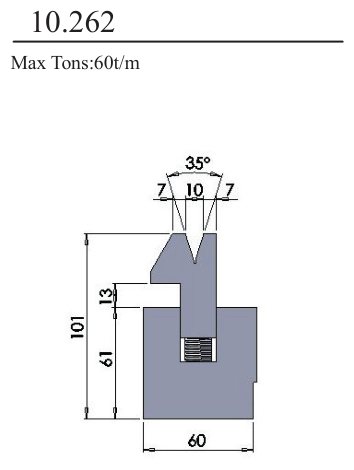

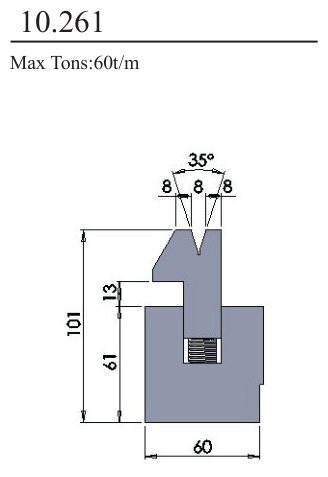

Flattening / Hemming
For closing hems and seams in one or two strokes.

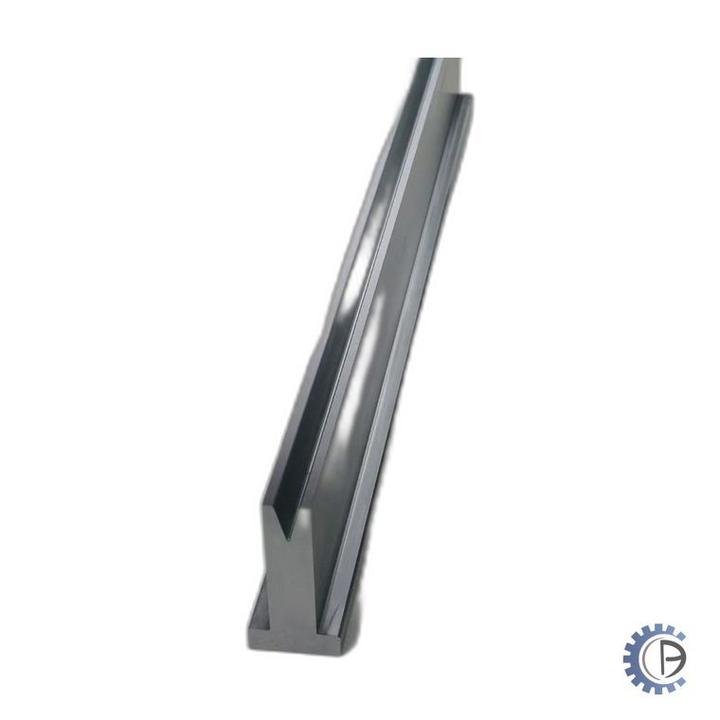

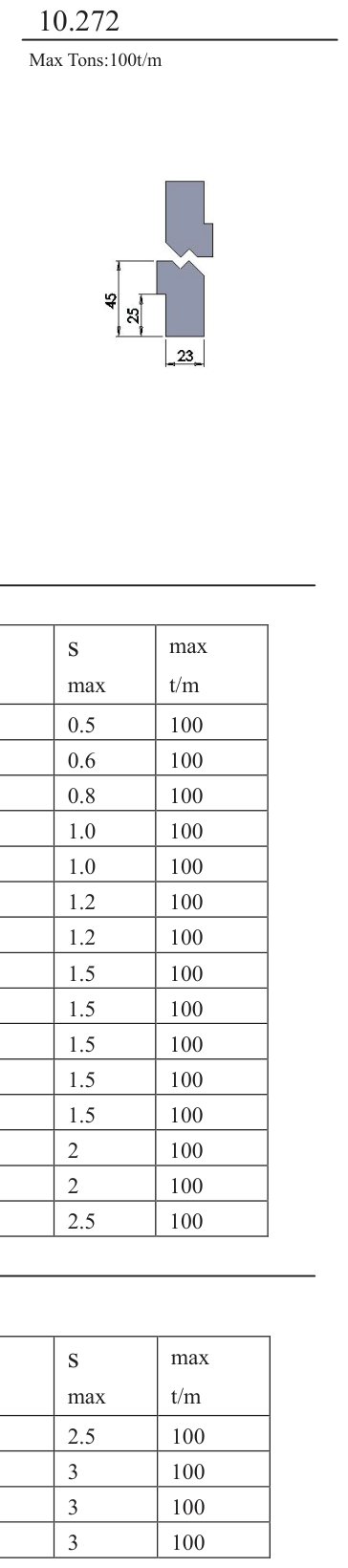

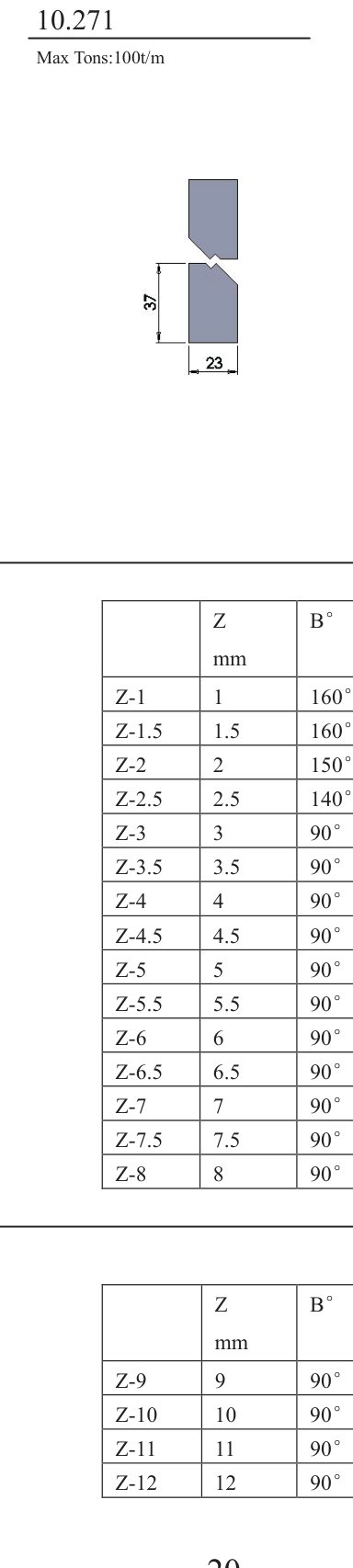

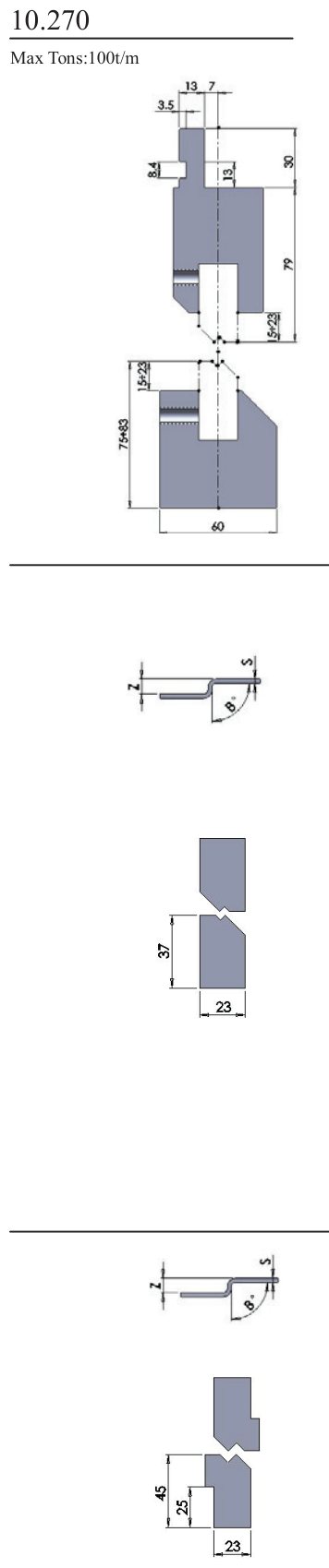

Z-type Offset
Offset / joggle tooling for stepped profiles.

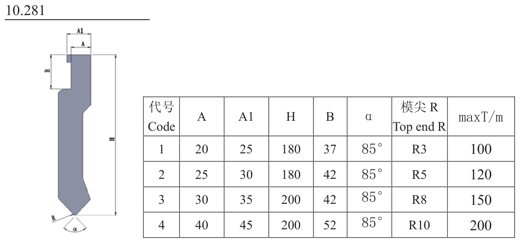

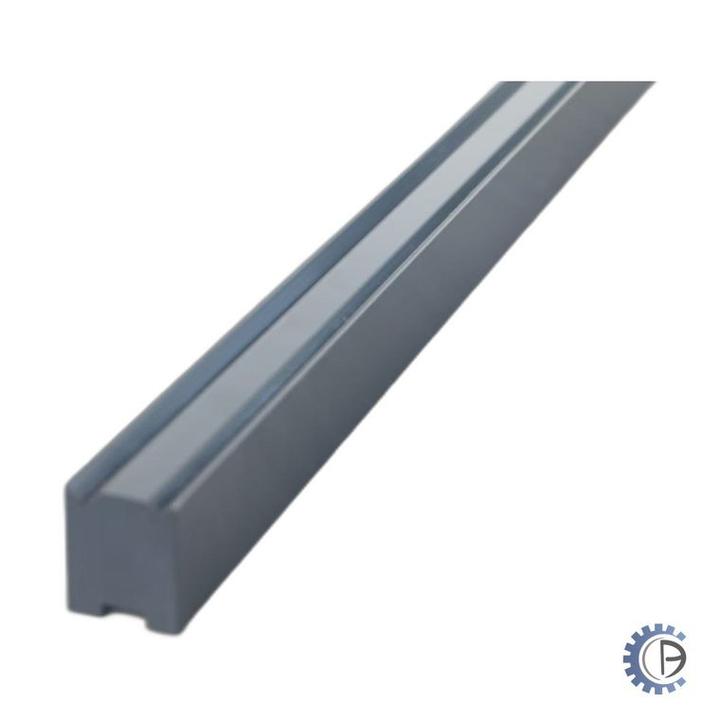

Heavy-Duty Direct-Link
High-tonnage upper tooling for thick plate.
